Precision Wheel Fitment

Wheel Education / Vehicle Fitment Guides

A great wheel should look like it belongs on your vehicle. Getting there starts with more than a diameter or an aggressive offset. BE FORGED considers the complete setup, including your brakes, suspension, tires and intended stance, to help configure a bespoke forged wheel around your build.

Quick start: what to send for a fitment review

Your vehicle: year, make, model, trim and drivetrain.
Your current setup: front and rear wheel diameter, width, offset and tire sizes, if known.
Changes: brake kit, suspension, spacers, lift, lowering or body modifications.
Your goal: preferred wheel design, finish, diameter and stance, plus street, track or towing use.
Supporting details: clear photos, available brake templates and axle ratings where relevant.

Missing a measurement? Send what you know. BE FORGED will identify what is needed before confirming the specification.

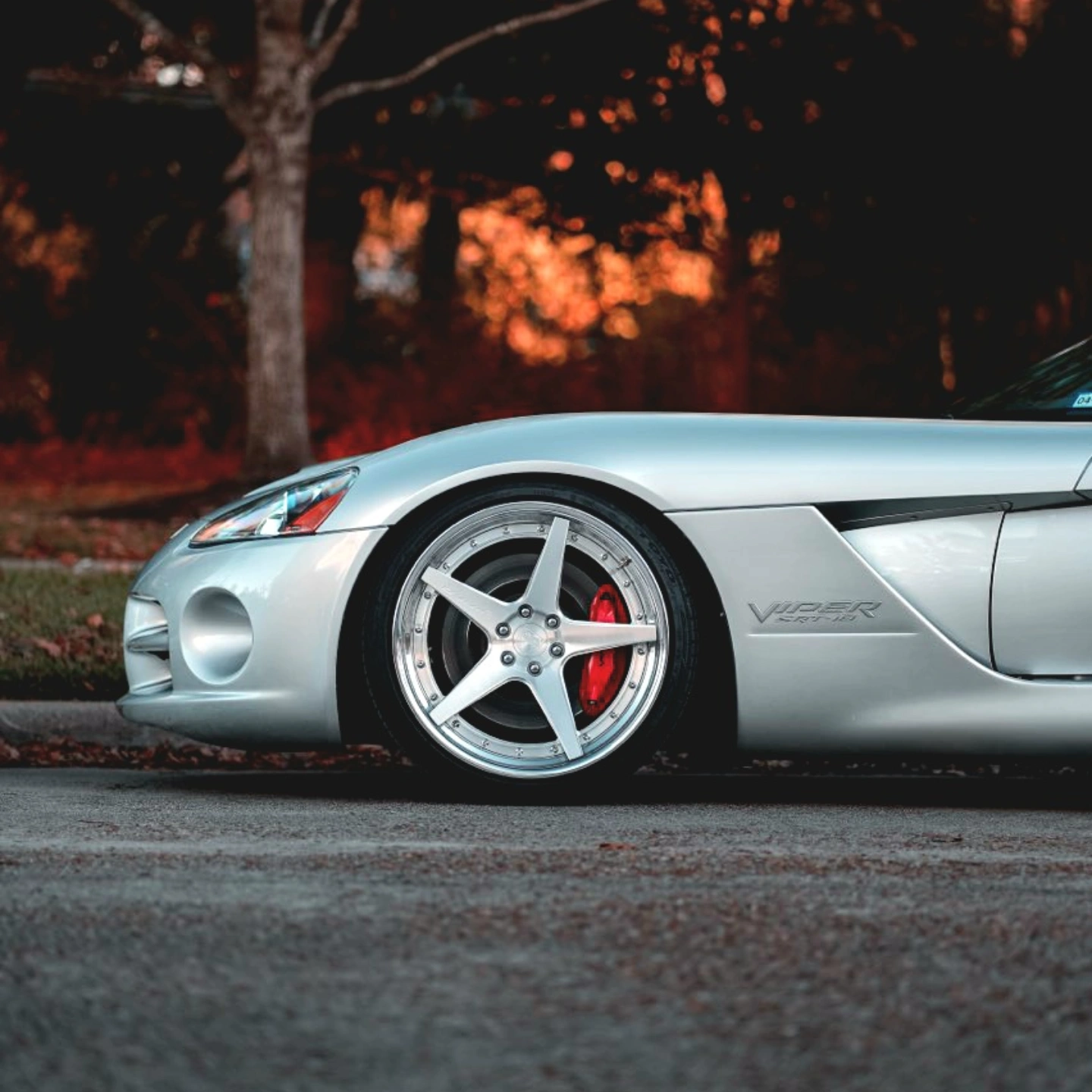

For photographed examples, explore the Tesla, Viper and Mustang build case studies. Each documents one vehicle configuration.

Start with the vehicle, then the stance

Your year, make, model and trim give us a starting point. Brake packages, suspension changes and body modifications can make two otherwise similar vehicles need different wheel specifications. Tell us whether you want a subtle factory-inspired look, a fuller arch or a more pronounced stance. Reference photos help explain the goal, but they do not replace the fitment details of your own vehicle.

Width and offset work together

Offset describes the position of the wheel’s mounting surface relative to its centerline. Width determines how far the wheel extends on either side of that centerline. Both affect the available space toward the suspension and toward the fender, so an offset number by itself does not tell the whole story.

Diameter, tire selection, bolt pattern and center bore also belong in the conversation. If you like your current fitment, send its wheel and tire specifications. If you want to change it, explain what needs to move inward or outward and share clear photos.

Leave room for what matters

Brake clearance includes the relationship between the caliper, spokes and barrel. Let us know about large factory brakes or an aftermarket brake kit; additional measurements or a brake template may be needed. Lowering springs, coilovers, lifts, spacers and widebody changes should also be disclosed.

Wheel load requirements must suit the vehicle and its intended use. Clearance also needs to account for steering and suspension movement, rather than the appearance of a parked vehicle alone. We review these considerations before confirming the configuration.

Planning a staggered or AWD setup?

Different front and rear dimensions can be appropriate for some vehicles, but wheel and tire choices must be considered together. For all-wheel-drive applications, the proposed tire combination needs to follow the vehicle manufacturer’s requirements for front-to-rear rolling circumference. Tell us about your drivetrain and intended tires early in the process.

Offset and backspacing explained

Offset is the distance between the mounting face and wheel centerline, usually expressed in millimeters. Positive offset places that face toward the outer side of the wheel; negative offset places it toward the inner side. Backspacing measures from the mounting face to the inner rim edge. It uses a different reference point, so the two numbers are not interchangeable.

A comparison example: moving from an 8-inch-wide wheel at +40 mm offset to a 9-inch-wide wheel at +35 mm adds 25.4 mm of nominal width. Half of that is 12.7 mm. The 5 mm reduction in offset moves the wheel outward. The nominal inner edge therefore moves inward by 7.7 mm, while the outer edge moves outward by 17.7 mm. This compares rim positions; it does not prove tire or brake clearance.

Nominal wheel width is measured between bead seats, not across the outside of the flanges. To calculate or compare actual backspacing, use measured overall width and consistent reference points. Do not substitute the nominal width into an overall-width calculation without accounting for the rim edges.

Wheel width and tire clearance

Choose a tire within its manufacturer’s approved rim-width range. Actual tire section width depends on the specific tire and measuring rim; the size printed on the sidewall is not a complete clearance drawing. Review inner suspension clearance and outer body clearance through steering movement and suspension travel, not only with the vehicle parked.

Brake clearance is more than diameter

The wheel barrel must clear the brake assembly, and the back of the spokes must clear the caliper profile. A larger diameter alone does not establish either relationship. Include the original brake package or aftermarket kit part number. Where a brake manufacturer provides a clearance template, use the correct template and its instructions as part of the review.

Center bore, bolt pattern and fastening hardware

The center bore is the opening that interfaces with the vehicle hub. Bolt pattern describes the number and arrangement of fasteners. Both need to suit the actual application, together with hub projection, mounting-face details, fastener seat type and the correct fastening hardware. Similar-looking patterns are not interchangeable. Confirm installation and torque instructions for the chosen setup.

Staggered and AWD tire planning

Review the complete front and rear tire pairing against the vehicle manufacturer’s requirements. Rolling circumference can differ between tire models and sizes even when nominal wheel diameters match. Use relevant manufacturer data rather than assuming a universal percentage tolerance for every AWD system.

Concavity and load capability

Concavity follows spoke architecture, mounting geometry and the brake envelope. The deepest reference profile may not be achievable on both axles of a particular vehicle. Confirm the available face profile together with the dimensions. Review load capability for the exact configuration and intended use, especially for EVs, trucks and loaded SUVs.

How to prepare an application review

Bring the vehicle information and measurements below to BE FORGED. The team can identify the missing details, compare the proposed wheel-and-tire package with the current setup and confirm the configuration before the order is finalized. Model-specific Vehicle Fitment Guides complement this checklist. Use the Wheel Education section to compare construction, material and finish choices.

Send us your fitment checklist

Vehicle year, make, model and trim.
Preferred wheel model, diameter, finish and desired stance.
Current wheel width, offset and tire size, if known.
Brake, suspension, spacer and body modifications.
Photos and any available measurements.

You do not need to have every number ready. Start a fitment inquiry with what you know, and we will identify the remaining information needed. Explore Monoblock and Multi-Piece designs, or visit our Forged Wheel FAQ for more guidance.
